Product Overview

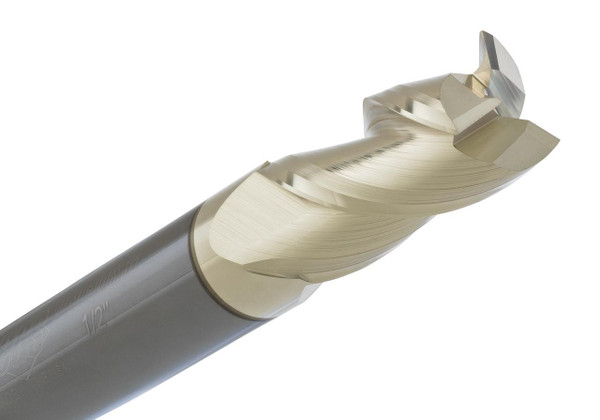

Aluminum work at 3/8" diameter with a finish upgrade — the CGS Tool 5318-S is a 3-flute square end mill from the Ferocious 3X 5300 Series built for fast stock removal without losing surface quality.
ZrN coating supports cleaner cutting in aluminum-focused work, and variable helix, variable pitch, and wiper end geometry knock down chatter even under extreme feeds. It's best suited for aluminum, copper, brass, non-ferrous materials, plastics, and composites.
Tool Specifications:
- Diameter: 3/8"
- Shank: 3/8"
- Length of Cut (LOC): 1"
- Overall Length (OAL): 2-1/2"
- Flutes: 3 - Square End
- Material: Solid Carbide
- Coating: ZrN
- Helix: Variable Helix
- Design: Single End
- Series: CGS 5300 Ferocious 3X Series
- Part No: 5318-S
Key Performance Features:
- 3-flute Ferocious 3X design for high-performance non-ferrous milling
- ZrN coating supports clean cutting in aluminum and similar materials
- Variable helix and variable pitch help reduce chatter and harmonics
- Wiper end geometry helps improve surface finish at high feed rates
- Solid carbide construction provides rigidity during aggressive machining
- Best suited for aluminum, copper, brass, non-ferrous materials, plastics, and composites
- Built for fast stock removal, slotting, profiling, and pocketing
