Product Overview

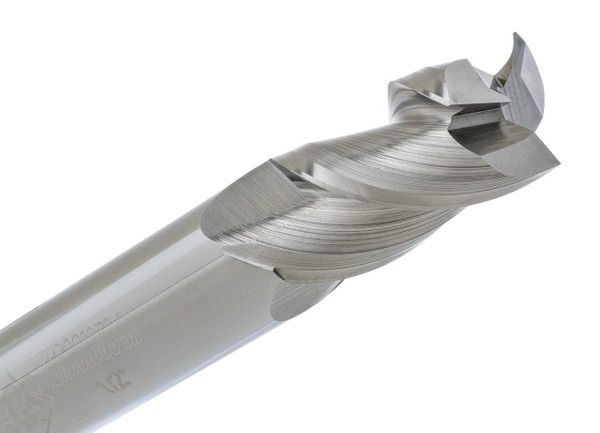

Larger non-ferrous jobs need aggressive removal without sacrificing finish, and the 5348 delivers both at 5/8" diameter. This 3-flute square end mill comes from the Ferocious 3x 5300 Series, built for aluminum and non-ferrous machining where aggressive stock removal, smooth chip flow, and clean surface finish are all important.
The variable helix, variable pitch, and wiper end geometry help reduce chatter and improve finish quality at higher feeds. With a 1-1/4" length of cut and 3-1/2" overall length, the 5348 gives strong performance in larger non-ferrous milling work.
Tool Specifications:
- Diameter: 5/8"
- Shank: 5/8"
- Length of Cut (LOC): 1-1/4"
- Overall Length (OAL): 3-1/2"
- Flutes: 3 Flute
- End Style: Square End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: Ferocious 3x 5300 Series
- Part No: 5348
Key Performance Features:
- 3-flute square end built for aluminum and non-ferrous milling
- Wiper end geometry improves overall surface finish
- Variable helix and pitch reduce chatter and harmonics
- 5/8" diameter supports stronger stock removal
- Built for high feeds and efficient material removal
- Suited to aluminum, copper, brass, non-ferrous metals, plastics, and composites
