Product Overview

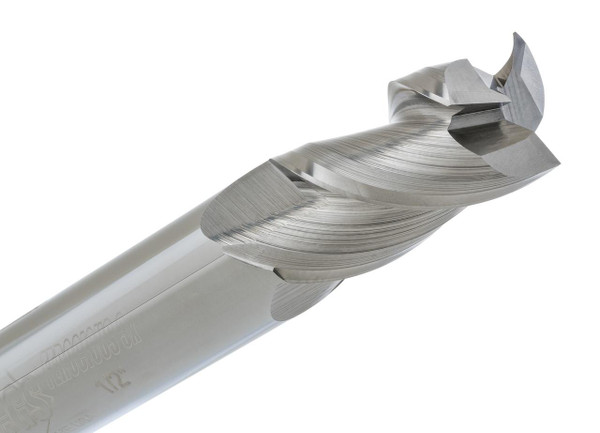

The CGS Tool 5369 is a 1" diameter 3-flute solid carbide square end mill from the Ferocious 3x 5300 Series, sized for aggressive aluminum work where a smaller tool simply wouldn't keep up. Its 4" length of cut and 7" overall length give it serious reach.
Uncoated and built on unique Ferocious 3x flute geometry with a wiper end matched to variable helix and pitch, it's engineered to keep chatter under control during heavy cutting. Rated for aluminum, copper, brass, plastics, and composites, it's a strong choice for fast stock removal and clean finishing.
Tool Specifications:
- Diameter: 1"
- Shank: 1"
- Length of Cut (LOC): 4"
- Overall Length (OAL): 7"
- Flutes: 3 - Square End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: Ferocious 3x 5300 Series
- Part No: 5369
Key Performance Features:
- 3-Flute design for aluminum and non-ferrous machining
- Large diameter matched to heavy stock removal
- Extended LOC and OAL give serious reach
- Variable helix and pitch reduce chatter
- Effective across aluminum, copper, and brass
- Also suited to plastics and composites
