Product Overview

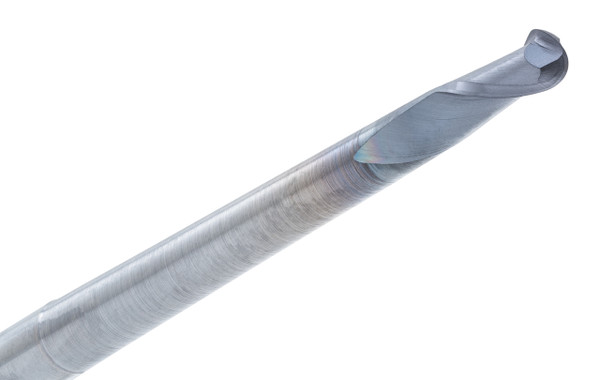

The CGS Tool 7002-ALTiN is a 1/8” diameter 2-flute solid carbide ball end mill from the Profile Series, built for the kind of fine detail work where a bigger tool simply won't fit. This is a small-diameter finishing tool, not a roughing one, sized for profile, deep pocket, and contour milling in tight spaces.
The .0625” ball radius and 30° helix are ground on precision CNC equipment to keep the edge consistent at this scale, and the ALTiN coating matters more here than on larger tools since small-diameter cutters run hot fast. It's rated across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites, giving it real range despite the small size.
Tool Specifications:
- Diameter: 1/8"
- Shank: 3/16"
- Length of Cut (LOC): 1/4"
- Overall Length (OAL): 2-1/2"
- Flutes: 2 - Ball End
- Material: Solid Carbide
- Coating: ALTiN
- Radius: .0625"
- Series: CGS Profile Series (7000 Series)
- Part No: 7002-ALTiN
Key Performance Features:
- 2-Flute ball end design for fine detail profile and pocket work
- .0625" radius suited to tight-space contour milling
- 30° helix with precision-ground cutting edges
- ALTiN coating helps manage heat at small diameters
- Effective across mild steels, stainless, cast iron, and titanium
- Also suited to non-ferrous metals, plastics, and composites
