Product Overview

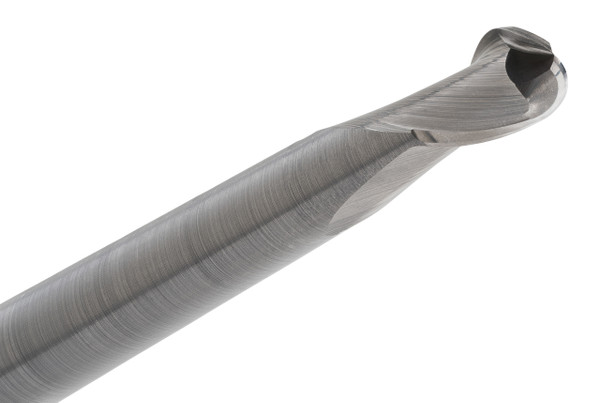

The CGS Tool 7002 is a 1/8" diameter 2-flute solid carbide ball end mill from the 7000 Profile Series, and it's built for jobs where the cutter needs to reach into a pocket and still leave a clean rounded surface behind. Profile milling, contour work, and deep pocket finishing all put extra strain on reach and rigidity, and this series is set up specifically to handle that combination without sacrificing edge control.
The .0625" radius gives it a smooth rounded form that's well suited to blending curved surfaces, and with a 1/4" length of cut and 2-1/2" overall length, it has enough reach for most profile work without becoming unwieldy. The uncoated carbide body keeps things straightforward, and the 30° helix helps move chips out of the cut cleanly across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites.
Tool Specifications:
- Diameter: 1/8"
- Shank: 3/16"
- Length of Cut (LOC): 1/4"
- Overall Length (OAL): 2-1/2"
- Flutes: 2 - Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .0625"
- Series: CGS 7000 Profile Series
- Part No: 7002
Key Performance Features:
- 2-flute ball end geometry designed for profile and contour milling
- .0625" radius handles compact rounded surface work with control
- Profile Series build supports deep pocket reach
- 30° helix keeps chip movement steady during the cut
- A solid choice for finishing, blending, and contour passes
- Runs well in mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
