Product Overview

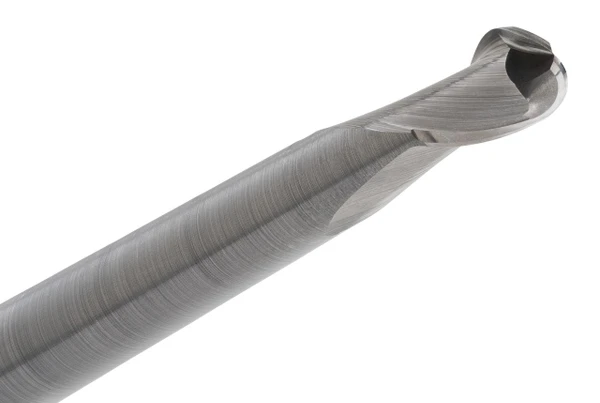

The CGS Tool 7005 is a 1/4" diameter 2-flute solid carbide ball end mill from the 7000 Profile Series, built for profile milling and pocket blending where added reach and clean rounded cutting both matter.
Its .125" radius gives a smooth ball-end form for curved surfaces, and with a 3/8" length of cut and 3" overall length, this cutter gives practical reach for profile and deep-pocket applications.
Tool Specifications:
- Diameter: 1/4"
- Shank: 1/4"
- Length of Cut (LOC): 3/8"
- Overall Length (OAL): 3"
- Flutes: 2 - Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .125"
- Series: CGS 7000 Profile Series
- Part No: 7005
Key Performance Features:
- Profile and contour milling handled by a 2-flute ball end design
- .125" radius supports smooth rounded surface work
- Profile Series build supports finishing and detail work
- 3" OAL gives useful reach for pocket and profile applications
- Suited to blending, contouring, and curved pocket machining
- Performs across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
