Product Overview

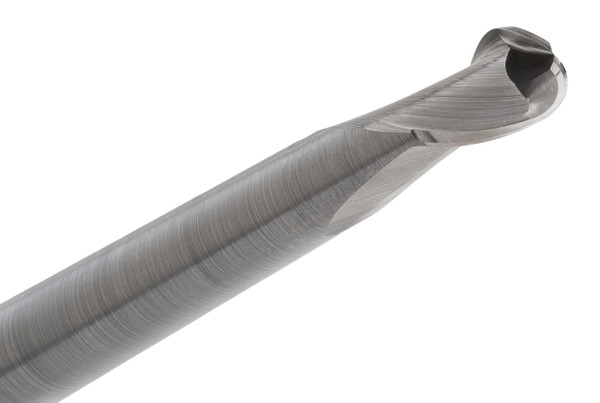

The CGS Tool 7006 is a 5/16" diameter 2-flute solid carbide ball end mill from the 7000 Profile Series, sized for profile and contour milling where a smooth radius cut needs a bit of extra reach. Its 4" overall length is what separates it from a standard-length ball end mill.
Built on the same precision CNC equipment as CGS Tool's other general-purpose lines, it holds a 30° helix and a .1562" radius matched to its diameter for a controlled cutting feel. Uncoated and rated across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites, it's suitable for general-purpose contour work.
Tool Specifications:
- Diameter: 5/16"
- Shank: 3/8"
- Length of Cut (LOC): 1/2"
- Overall Length (OAL): 4"
- Flutes: 2 - Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .1562"
- Series: CGS 7000 Profile Series
- Part No: 7006
Key Performance Features:
- 2-Flute ball end design for profile and contour milling
- Extended OAL matched to diameter for useful reach
- .1562" radius supports smooth rounded cuts
- 30° helix with precision-ground cutting edges
- Effective across mild steels, stainless, cast iron, and titanium
- Also suited to non-ferrous metals, plastics, and composites
