Product Overview

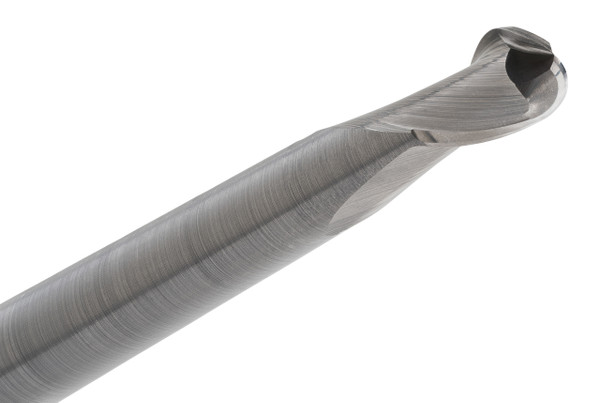

The CGS Tool 7009 is a 1/2” diameter 2-flute solid carbide ball end mill from the Profile Series, built for the same profile, deep pocket, and contour work as its 4-flute counterparts but with fewer, more open flutes for better chip clearance at this diameter. When chip evacuation matters more than raw flute count, this is the version to reach for.
It's ground on precision CNC equipment with the standard 30° helix, and the .250” ball radius suits full-diameter contour passes without needing a separate finishing tool. Uncoated and rated across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites, it holds the same dependable, do-it-all reputation as the rest of the Profile line.
Tool Specifications:
- Diameter: 1/2"
- Shank: 1/2"
- Length of Cut (LOC): 13/16"
- Overall Length (OAL): 4"
- Flutes: 2 - Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .250"
- Series: CGS Profile Series (7000 Series)
- Part No: 7009
Key Performance Features:
- 2-Flute ball end design for improved chip clearance
- Suited to profile, deep pocket, and contour milling
- 30° helix with precision-ground cutting edges
- .250" radius matched for full-diameter contour passes
- Effective across mild steels, stainless, cast iron, and titanium
- Also suited to non-ferrous metals, plastics, and composites
