Product Overview

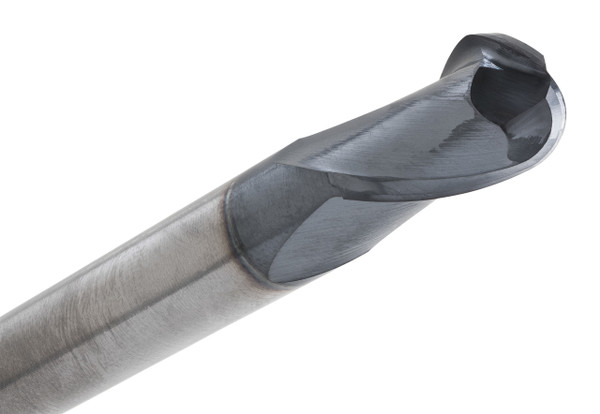

The CGS Tool 7010-ALTiN is a 1/2" diameter 2-flute solid carbide ball end mill from the 7000 Profile Series, sized for profile, deep pocket, and contour milling where extended reach matters as much as ball end geometry. Its 6" overall length is what gives it that added distance.
Built on the same precision CNC equipment as CGS Tool's other general-purpose lines, it holds a 30° helix and a .250" radius matched to its diameter, with an ALTiN coating that supports wear resistance in tougher or hotter cuts. Rated for deep contour work and profile finishing, it performs well in mixed materials.
Tool Specifications:
- Diameter: 1/2"
- Shank: 1/2"
- Length of Cut (LOC): 13/16"
- Overall Length (OAL): 6"
- Flutes: 2 - Ball End
- Material: Solid Carbide
- Coating: ALTiN
- Radius: .250"
- Series: CGS 7000 Profile Series
- Part No: 7010-ALTiN
Key Performance Features:
- 2-Flute ball end design for profile and contour milling
- Extended OAL matched to diameter for deeper reach
- ALTiN coating improves heat and wear resistance
- .250" radius supports smooth rounded surfaces
- Effective across mild steels, stainless, cast iron, and titanium
- Also suited to non-ferrous metals, plastics, and composites
