Product Overview

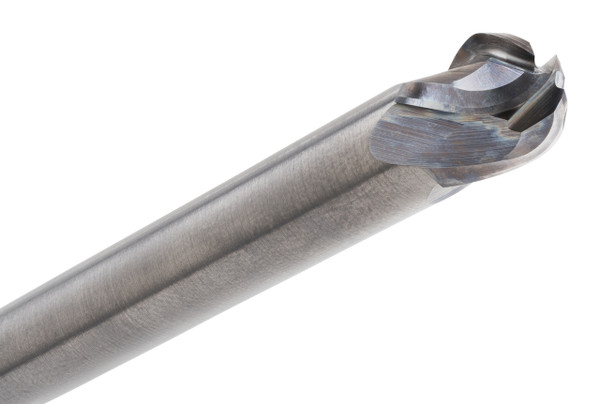

Deep pocket contouring is pretty much the entire reason behind the CGS Tool 8010 , it’s a 1/2" diameter 4-flute ball end mill, from the long-reach 8000 Profile Series, made to get into those features a standard-length tool just can’t touch.
A 6" overall length adds real extension, and the ball nose keeps 3D surface work smooth throughout. Uncoated carbide handles mild steels, stainless, cast iron, titanium, non-ferrous materials, plastics, and composites.
Tool Specifications:
- Diameter: 1/2"
- Shank: 1/2"
- Length of Cut (LOC): 13/16"
- Overall Length (OAL): 6"
- Flutes: 4 - Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .250"
- Helix: 30°
- Design: Single End
- Series: CGS 8000 Profile Series
- Part No: 8010
Key Performance Features:
- 4-flute ball end design for contouring and profile milling
- Extended 6" overall length supports deep pocket applications
- Ball nose profile helps create smooth curved surfaces and blended details
- 30° helix supports controlled cutting and chip movement
- Solid carbide construction provides rigidity for extended-reach work
- Suitable for mild steels, stainless, cast iron, titanium, non-ferrous materials, plastics, and composites
- Built for deep pocket milling, 3D profiling, finishing, and surface blending
