Product Overview

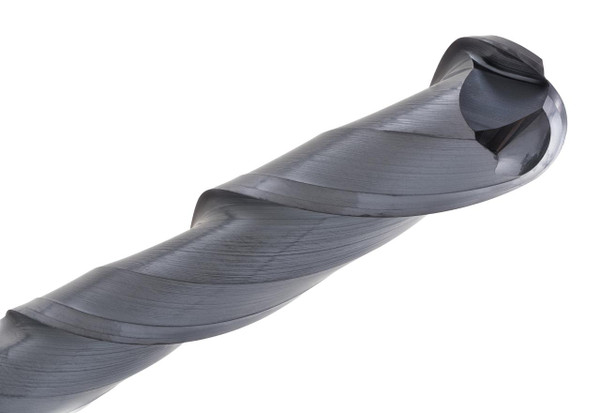

Long-reach ball-end work is the whole point of the CGS Tool 822-2500-ALTiN, a 1/4" diameter 2-flute solid carbide cutter from the 822 Series. It's built for jobs where the contour or pocket you're chasing sits deeper than a standard ball mill can comfortably reach.
A .125" radius keeps the rounded cutting form clean through curved walls and finishing passes, and the ALTiN coating gives the edge some backbone against heat as the 1-1/2" length of cut does its work. At 4" overall, this 822 Series cutter adds the reach shops need in mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites.
Tool Specifications:
- Diameter: 1/4"
- Shank: 1/4"
- Length of Cut (LOC): 1-1/2"
- Overall Length (OAL): 4"
- Flutes: 2 - Ball End
- Material: Solid Carbide
- Coating: ALTiN
- Series: CGS 822 Series
- Part No: 822-2500-ALTiN
Key Performance Features:
- 2-flute ball end built for long-reach contour milling
- .125" radius holds a clean rounded surface through curved passes
- 1-1/2" LOC adds depth for deeper pocket work
- ALTiN coating helps manage heat and wear
- Suited to profile, finishing, and blending work
- Runs in mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
