Product Overview

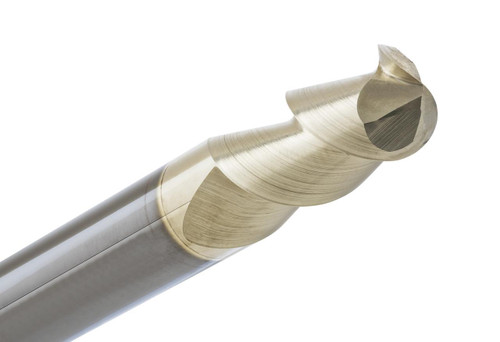

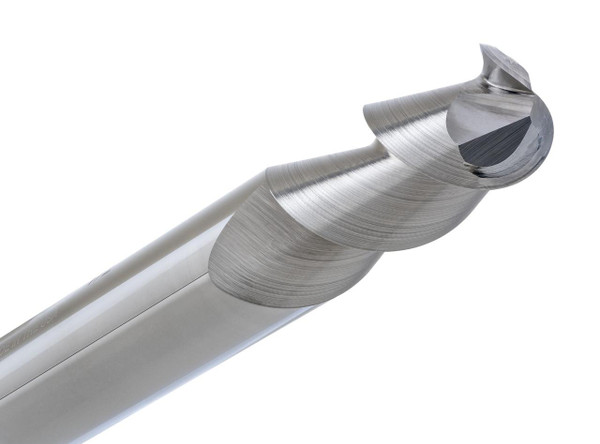

The CGS Tool BN2003 has a 3/16” diameter , 2-flute solid carbide ball end mill. And it’s made for high speed machining of aluminum, non-ferrous metals, plastics and composites. It’s part of the BN2000 Series Ferocious, kind of, and this tool tends to give strong material removal rates and a smoother surface result, plus dependable performance in tough CNC milling work.
Built from premium solid carbide, the BN2003 uses CGS Tool’s own 55° high helix geometry for chip evacuation that stays efficient, and for cutting forces that are typically lower. The precision-ground ball end form works really well for contour work, profiling too , and for 3D surface machining. Also, the uncoated cutting edges help keep material buildup down, so the cut stays clean, especially in aluminum and other non-ferrous materials.
Tool Specifications:
- Diameter: 3/16”
- Shank: 3/16”
- Length of Cut (LOC): 5/8”
- Overall Length (OAL): 2”
- Flutes: 2 - Ball End
- Radius: .0938”
- Material: Solid Carbide
- Coating: Uncoated
- Series: BN2000 Series Ferocious
- Part No: BN2003
Key Performance Features:
- 2-Flute ball end design for contouring and profiling applications
- Original 55° high helix geometry for superior chip evacuation
- Uncoated cutting edges optimized for aluminum and non-ferrous materials
- Supports high chip loads and aggressive feed rates
- Produces smooth surface finishes in complex machining operations
- Ideal for 3D machining, finishing, and sculptured surfaces
- Excellent performance in aluminum, copper, brass, plastics, and composites
- Engineered for high-speed CNC milling and efficient material removal.
