Product Overview

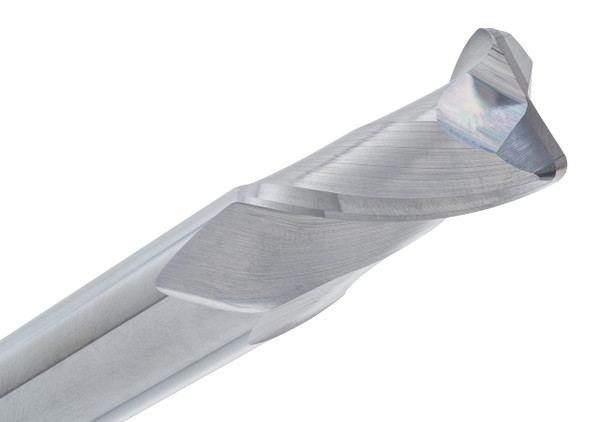

The CGS Tool CR123-1250.010 is a 1/8" diameter 2-flute solid carbide corner radius end mill from the CR123 Series, sized for small features where a slightly strengthened corner outperforms a sharp edge. Its .010" radius is built to protect the corner without giving up the precision small profiles demand.
Built on the same precision CNC equipment as CGS Tool's other general-purpose lines, it holds a 30° helix and a single-end design matched to steady, general-purpose cutting. Uncoated and rated across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites, it's a small-radius option for cleaner corner control.
Tool Specifications:
- Diameter: 1/8"
- Shank: 1/8"
- Length of Cut (LOC): 1/2"
- Overall Length (OAL): 1-1/2"
- Flutes: 2 - Corner Radius
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .010"
- Series: CGS CR123 Series
- Part No: CR123-1250.010
Key Performance Features:
- 2-Flute corner radius design for small milling work
- .010" radius matched to diameter for corner support
- Compact OAL keeps the setup rigid
- 30° helix with precision-ground cutting edges
- Effective across mild steels, stainless, cast iron, and titanium
- Also suited to non-ferrous metals, plastics, and composites
