Product Overview

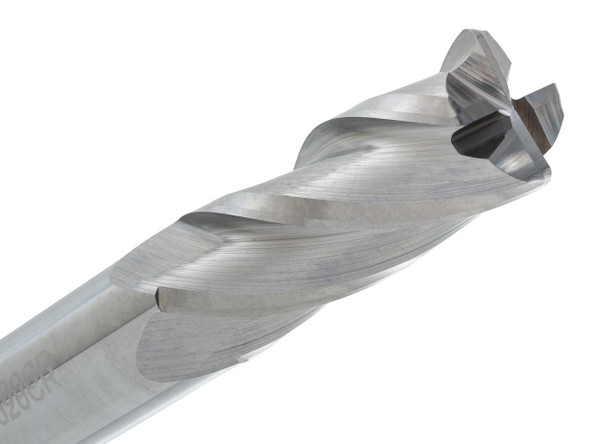

Small milling applications still benefit from extra edge strength, an like the CR143-1875.015 does, it brings that at a 3/16" diameter. This 4 flute corner radius end mill carries a .015" radius and it helps keep the cutting corner safe while the finished machined detail stays clean and sharp
Built with a 30° helix, plus uncoated solid carbide construction, this CR143 Series cutter kinda gives dependable general purpose performance. You can use it for profiling, shoulder work ,side wall milling, and those radius corner style applications across mixed CNC materials.
Tool Specifications:
- Diameter: 3/16"
- Shank: 3/16"
- Length of Cut (LOC): 5/8"
- Overall Length (OAL): 2"
- Flutes: 4 Flute
- End Style: Corner Radius
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .015"
- Series: CR143 Series
- Part No: CR143-1875.015
Key Performance Features:
- 4-flute corner radius design built for small precision milling
- .015" radius helps reduce sharp-corner wear
- 30° helix supports smooth, general-purpose cutting
- Handles profiling, shoulder milling, and side wall work
- Single-end solid carbide construction
- Cuts mild steel, stainless, cast iron, titanium, non-ferrous, plastics, and composites
