Product Overview

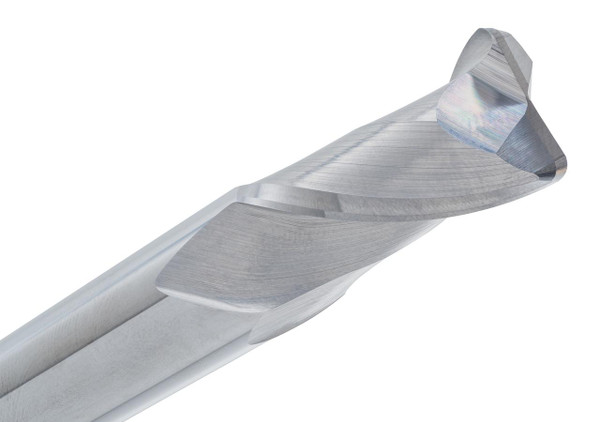

The CGS Tool CR123-1875.015 is a 3/16" diameter 2-flute solid carbide corner radius end mill built for the smaller jobs where a dead-sharp corner just doesn't hold up. That .015" radius isn't there for looks — it takes just enough load off the corner to stop it from chipping out early, while still leaving a profile that reads clean on the part.
It's a 30° helix, single-end tool, so it's built to do one job well rather than stretch across everything. Shops reach for it on slotting, profiling, shoulders, and side wall cuts where the corner is the weak point. Left uncoated, it's a straightforward, no-frills option that runs fine in mild steel, stainless, cast iron, titanium, non-ferrous material, plastics, and composites.
Tool Specifications:
- Diameter: 3/16"
- Shank: 3/16"
- Length of Cut (LOC): 5/8"
- Overall Length (OAL): 2"
- Flutes: 2 Flute
- End Style: Corner Radius
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .015"
- Series: CR123 Series
- Part No: CR123-1875.015
Key Performance Features:
- 2-flute corner radius geometry sized for smaller milling work
- .015" radius takes the edge off corner wear before it starts
- 30° helix keeps the cut moving smoothly
- Handles slotting, profiling, shoulders, and side wall passes
- Single-end carbide build
- Runs in mild steel, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
