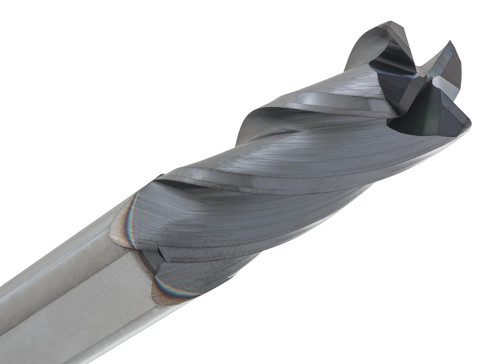

Small radius corner work with a coating boost, like a the CGS Tool CR123-1875.015-ALTiN — well it’s basically a 3/16" diameter 2-flute corner radius end mill from the CR123 Series, made for shoulder work and profiling where those small corners have to stay clean. The .015" radius keeps the cutting edge in good shape, and the ALTiN coating helps it survive and run steady through more demanding machining conditions , overall.
A 30° helix keeps cutting smooth, and this cutter is built for mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites.
Tool Specifications:
- Diameter: 3/16"
- Shank: 3/16"
- Length of Cut (LOC): 5/8"
- Overall Length (OAL): 2"
- Flutes: 2 - Corner Radius
- Material: Solid Carbide
- Coating: ALTiN
- Series: CGS CR123 Series
- Part No: CR123-1875.015-ALTiN
Key Performance Features:
- 2-flute corner radius design for compact milling
- .015" radius protects the cutting edge
- ALTiN coating supports heat and wear resistance
- 30° helix gives smooth cutting control
- Good for slotting, profiling, shoulder work, and side wall milling
- Suitable for mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
