Product Overview

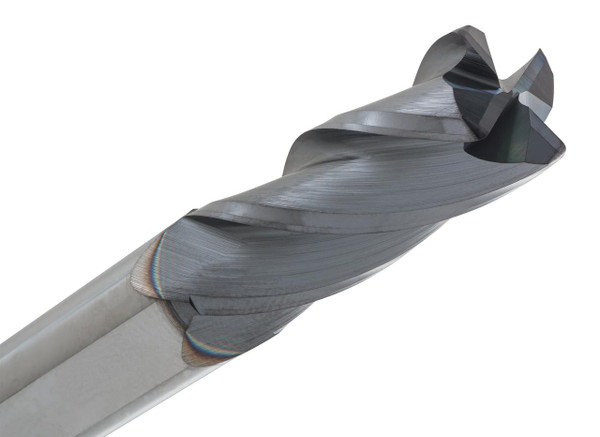

The CGS Tool CR143-2500.060-ALTiN is a 1/4" diameter 4-flute solid carbide corner radius end mill built for general-purpose milling, where a .060" corner radius strengthens the edge while keeping machined corners controlled.
The ALTiN coating adds heat and wear resistance under tougher machining conditions, and with a 3/4" length of cut and 2-1/2" overall length, this CR143 Series cutter is useful for profiling, shoulder milling, side wall work, and radius-corner applications.
Tool Specifications:
- Diameter: 1/4"
- Shank: 1/4"
- Length of Cut (LOC): 3/4"
- Overall Length (OAL): 2-1/2"
- Flutes: 4 - Corner Radius
- Material: Solid Carbide
- Coating: ALTiN
- Radius: .060"
- Series: CGS CR143 Series
- Part No: CR143-2500.060-ALTiN
Key Performance Features:
- General-purpose milling handled by a 4-flute corner radius design
- .060" radius improves cutting-edge strength
- ALTiN coating supports better heat and wear resistance
- 30° helix provides steady cutting control
- Suited to profiling, shoulder milling, and side wall work
- Performs across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
