Product Overview

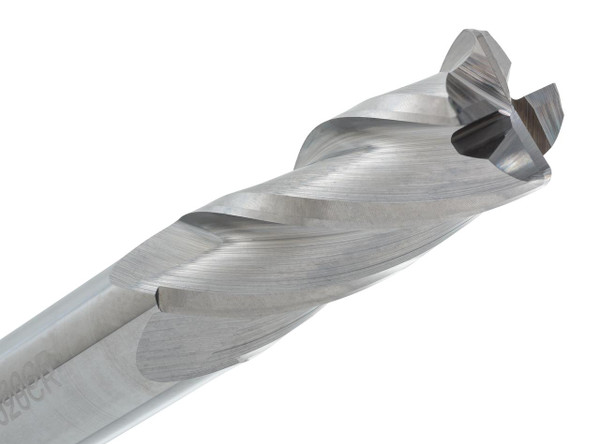

The CGS Tool CR143-3750.030 is a 3/8" diameter 4-flute solid carbide corner radius end mill built for general-purpose milling, with a .030" corner radius that supports the cutting edge and keeps small radius-corner features clean.
Single-end construction and a 30° helix make this CR143 Series cutter useful for profiling, shoulder milling, side wall work, and slotting, and the uncoated carbide body works well across everyday CNC shop conditions.
Tool Specifications:
- Diameter: 3/8"
- Shank: 3/8"
- Length of Cut (LOC): 1"
- Overall Length (OAL): 2-1/2"
- Flutes: 4 - Corner Radius
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .030"
- Series: CGS CR143 Series
- Part No: CR143-3750.030
Key Performance Features:
- General-purpose milling handled by a 4-flute corner radius design
- .030" radius reduces sharp-corner wear
- 30° helix supports smooth chip movement
- Suited to profiling, shoulder milling, slotting, and side wall work
- Single-end solid carbide construction
- Performs across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
