Product Overview

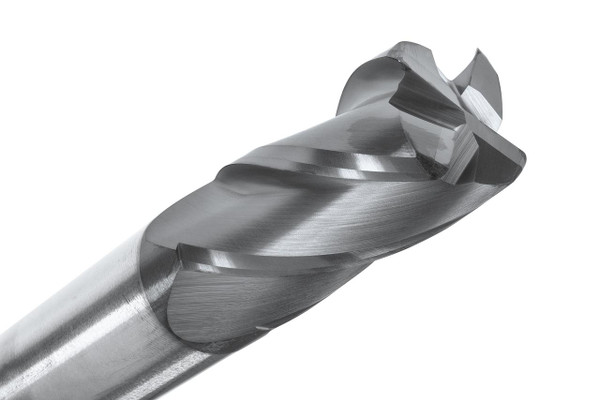

Stronger protection at the radius-corner level comes along with the CGS Tool CR143-5000.125-ALTiN . This is a 1/2" diameter, 4-flute corner radius end mill from the CR143 Series, made to push back the cutting edge while still delivering a controlled, rounded corner shape.
The ALTiN coating helps with heat and wear resistance so you get steadier results in tougher cutting conditions, and the 1" length of cut within a 3" overall length gives dependable reach for profiling plus shoulder work. It works across mild steels, stainless , cast iron, titanium, non-ferrous metals, plastics , and composites.
Tool Specifications:
- Diameter: 1/2"
- Shank: 1/2"
- Length of Cut (LOC): 1"
- Overall Length (OAL): 3"
- Flutes: 4 - Corner Radius
- Material: Solid Carbide
- Coating: ALTiN
- Series: CGS CR143 Series
- Part No: CR143-5000.125-ALTiN
Key Performance Features:
- 4-flute corner radius design for general-purpose milling
- .125" radius improves cutting-edge strength
- ALTiN coating supports better heat and wear resistance
- 30° helix provides steady cutting control
- Good for profiling, shoulder milling, and side wall work
- Suitable for mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
