Product Overview

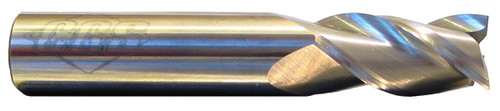

Small-diameter aluminum work still needs edge support, and the CR5303.020 provides it at 3/16" diameter. This 3-flute corner radius end mill comes from the Ferocious 3x CR5300 Series, built for non-ferrous machining where edge strength, clean chip movement, and surface finish all matter together.
The .020" corner radius gives the cutting edge extra support while keeping the machined profile clean. Unique flute geometry, wiper end design, variable helix, and variable pitch all work together to reduce chatter and harmonics, supporting high feeds across aluminum, copper, brass, plastics, and composites.
Tool Specifications:
- Diameter: 3/16"
- Shank: 3/16"
- Length of Cut (LOC): 5/8"
- Overall Length (OAL): 2"
- Flutes: 3 Flute
- End Style: Corner Radius
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .020"
- Series: CR5300 / Ferocious 3x Series
- Part No: CR5303.020
Key Performance Features:
- 3-flute corner radius design built for non-ferrous machining
- .020" radius improves cutting-edge strength
- Wiper end geometry supports a cleaner surface finish
- Variable helix and pitch reduce chatter and harmonics
- Built for extreme feeds and strong stock removal
- Suited to aluminum, copper, brass, plastics, and composites
