CR5303.020-S

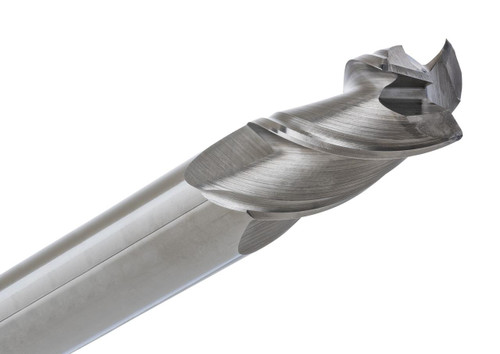

The CGS Tool CR5303.020-S is a 3/16" diameter 3-flute solid carbide corner radius end mill from the Ferocious 3x CR5300 Series, built for aluminum and non-ferrous work where edge strength and surface finish both need to hold up under high feeds.
That .020" corner radius is of doing the heavy lifting at the cutting edge, and the ZrN coating helps make the aluminum cut look cleaner. With a variable helix, variable pitch, and a wiper end geometry, it reduces chatter, and improves the finish quality too—across aluminum, copper, brass, non ferrous metals , plastics, and composites.

Tool Specifications:

• Diameter: 3/16"
• Shank: 3/16"
• Length of Cut (LOC): 5/8"
• Overall Length (OAL): 2"
• Flutes: 3 - Corner Radius
• Material: Solid Carbide
• Coating: ZrN
• Radius: .020"
• Series: CGS CR5300 / Ferocious 3x Series
• Part No: CR5303.020-S

Key Performance Features:

• Non-ferrous machining handled by a 3-flute corner radius design
• .020" radius improves cutting-edge strength
• ZrN coating supports cleaner aluminum cutting
• Wiper end geometry improves surface finish
• Variable helix and variable pitch reduce chatter and harmonics
• Ideal for aluminum, copper, brass, non-ferrous metals, plastics, and composites
