Product Overview

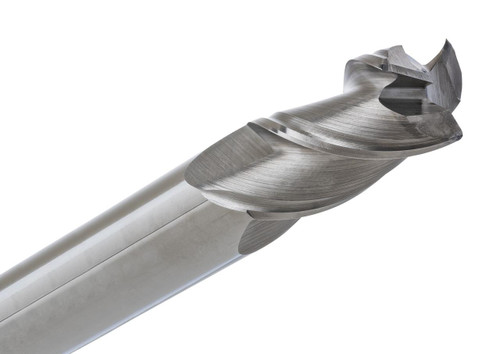

Aluminum work with a bit of corner support needs a tool that doesn't sacrifice speed for durability, and the CR5312.020-S manages both. This 5/16" diameter 3-flute corner radius end mill comes from the Ferocious 3x CR5300 Series, built for non-ferrous machining where edge support matters alongside fast material removal.
The .020" corner radius strengthens the cutting edge without dulling part accuracy, and the ZrN coating pairs well with aluminum's tendency to build up on bare carbide. Variable helix, variable pitch, and wiper end geometry round out the design, keeping chatter down while the tool clears material fast across aluminum, copper, brass, plastics, and composites.
Tool Specifications:
- Diameter: 5/16"
- Shank: 5/16"
- Length of Cut (LOC): 1"
- Overall Length (OAL): 2-1/2"
- Flutes: 3 Flute
- End Style: Corner Radius
- Material: Solid Carbide
- Coating: ZrN
- Radius: .020"
- Series: CR5300 / Ferocious 3x Series
- Part No: CR5312.020-S
Key Performance Features:
- 3-flute corner radius design built for non-ferrous machining
- ZrN coating supports cleaner cutting in aluminum
- .020" radius improves cutting-edge strength
- Wiper end geometry improves overall surface finish
- Variable helix and pitch reduce chatter and harmonics
- Suited to aluminum, copper, brass, plastics, and composites
