Product Overview

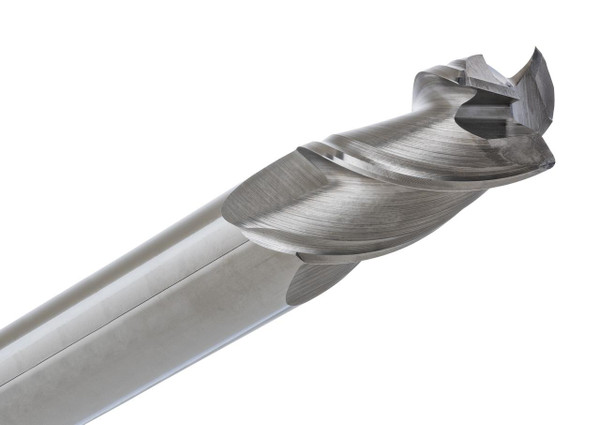

Aluminum corner work needs strength without sacrificing chip flow, and the CR5330.030 delivers both at 1/2" diameter. This 3-flute corner radius end mill comes from the Ferocious 3x CR5300 Series, designed for aluminum and non-ferrous machining where clean chip movement, edge strength, and strong surface finish are all important.
The .030" corner radius helps support the cutting edge while the variable helix, variable pitch, and wiper end geometry help reduce chatter and harmonics. This makes the CR5330.030 a useful option for high-feed non-ferrous milling applications.
Tool Specifications:
- Diameter: 1/2"
- Shank: 1/2"
- Length of Cut (LOC): 1"
- Overall Length (OAL): 3"
- Flutes: 3 Flute
- End Style: Corner Radius
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .030"
- Series: CR5300 / Ferocious 3x Series
- Part No: CR5330.030
Key Performance Features:
- 3-flute corner radius design built for non-ferrous machining
- .030" radius helps improve cutting-edge strength
- Wiper end geometry supports better surface finish
- Variable helix and pitch reduce chatter and harmonics
- Built for strong feeds and efficient stock removal
- Suited to aluminum, copper, brass, non-ferrous metals, plastics, and composites
