Product Overview

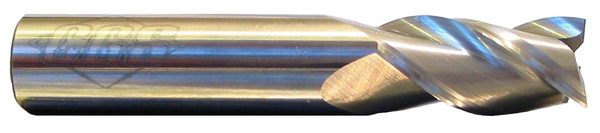

Edge strength and surface finish need to work together in aluminum machining, and the CR5330.030-S delivers both at 1/2" diameter. This 3-flute corner radius end mill comes from the Ferocious 3x CR5300 Series, built for non-ferrous work where a stronger corner shouldn't come at the cost of finish quality.
The .030" corner radius gives the cutting edge extra support while keeping the finished profile accurate. With a ZrN coating, the wiper-end shape, and both variable helix plus variable pitch, this tool helps cut down on chatter of, and it also supports solid stock removal through aluminum, copper, brass, plastics, and composite materials.
Tool Specifications:
- Diameter: 1/2"
- Shank: 1/2"
- Length of Cut (LOC): 1"
- Overall Length (OAL): 3"
- Flutes: 3 Flute
- End Style: Corner Radius
- Material: Solid Carbide
- Coating: ZrN
- Radius: .030"
- Series: CR5300 / Ferocious 3x Series
- Part No: CR5330.030-S
Key Performance Features:
- 3-flute corner radius design built for non-ferrous machining
- .030" radius improves cutting-edge strength
- ZrN coating supports cleaner performance in aluminum
- Wiper end geometry improves overall surface finish
- Variable helix and pitch reduce chatter
- Suited to aluminum, copper, brass, plastics, and composites
