Product Overview

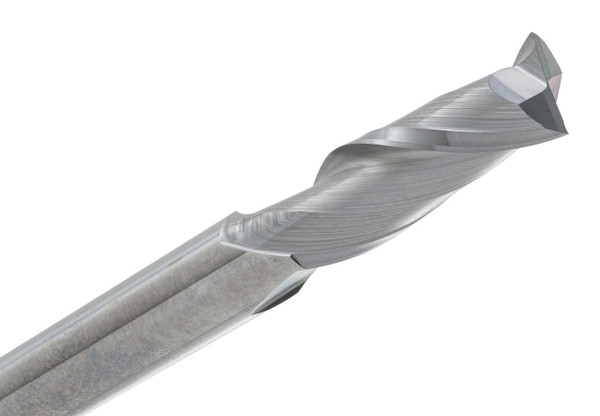

The CGS Tool M120-160 is a 16mm diameter 2-flute solid carbide square end mill from the metric 120 Series, sized for larger metric milling where chip room and steady stock removal both matter. It's a strong metric option for clean wall cutting.
Built on the same precision CNC equipment as CGS Tool's other general-purpose lines, it holds a 30° helix matched to good reach for slotting, profiling, and side wall milling. Uncoated and rated across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites, it's practical for general-purpose metric work.
Tool Specifications:
- Diameter: 16mm
- Shank: 16mm
- Length of Cut (LOC): 38mm
- Overall Length (OAL): 100mm
- Flutes: 2 - Square End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: CGS General Purpose (120 Series Metric)
- Part No: M120-160
Key Performance Features:
- Metric 2-Flute square end design for larger milling work
- Larger diameter matched to stronger material removal
- Extended LOC gives practical reach for deeper cuts
- 30° helix with precision-ground cutting edges
- Effective across mild steels, stainless, cast iron, and titanium
- Also suited to non-ferrous metals, plastics, and composites
