Product Overview

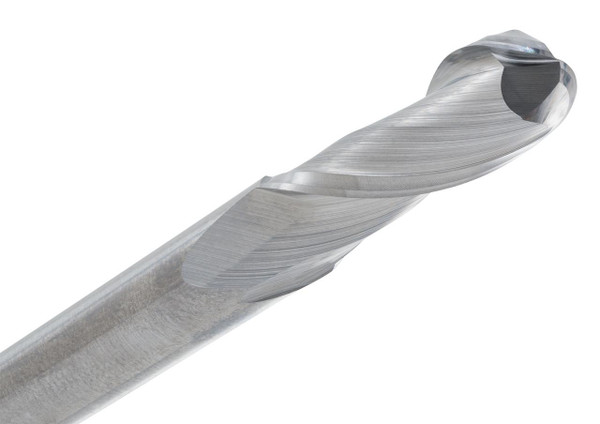

Metric contour work needs a matching mid size radius, and the M122-050-BN gives one at 5mm diameter, with a 2.5mm radius. This 2-flute ball end mill is built for metric profile and contour milling, for rounded features, pocket blending and finishing passes where you want steady cutting control.That 2.5mm radius means a smoother ball-end geometry for curved surfaces, and also for those bigger metric detail tasks. And with a 16mm length of cut, and a 50mm overall length. This is a pretty practical choice for controlled metric CNC milling.
Tool Specifications:
- Diameter: 5mm
- Shank: 5mm
- Length of Cut (LOC): 16mm
- Overall Length (OAL): 50mm
- Flutes: 2 Flute
- End Style: Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: 2.5mm
- Series: 122 Series Metric End Mills
- Part No: M122-050-BN
Key Performance Features:
- Metric 2-flute ball end built for contour milling
- 2.5mm radius supports smooth, rounded metric features
- 5mm diameter suits controlled profile work
- 16mm length of cut gives practical cutting reach
- Handles finishing, blending, and curved pocket machining
- Cuts mild steel, stainless, cast iron, titanium, non-ferrous, plastics, and composites
