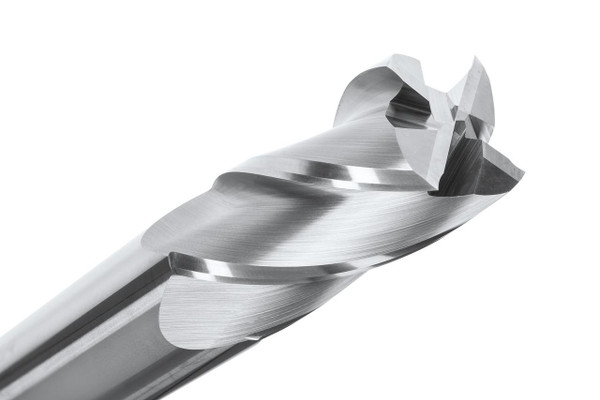

Product Overview
Metric general-purpose milling needs dependable cutting control, and the M140-080 provides it at an 8 mm diameter. This 4 flute square end mill is made for clean slots, true-ish profiles, plunge cutting ,and side work. It’s built with a 30° helix and a single end construction, so it keeps a steady bite while you’re doing typical CNC tasks. The uncoated carbide body makes it pretty handy for mild steel, stainless steel, cast iron, titanium, nonferrous metals, plastics, and composites, too.
Tool Specifications:
- Diameter: 8mm
- Shank: 8mm
- Length of Cut (LOC): 20mm
- Overall Length (OAL): 63mm
- Flutes: 4 Flute
- End Style: Square End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: 140 Series Metric End Mills
- Part No: M140-080
Key Performance Features:
- Metric 4-flute square end built for general-purpose milling
- 8mm diameter performs well for controlled metric features
- 20mm length of cut gives practical cutting reach
- 30° helix supports smooth chip movement
- Handles slotting, profiling, plunging, and side wall milling
- Cuts mild steel, stainless, cast iron, titanium, non-ferrous, plastics, and composites
