Product Overview

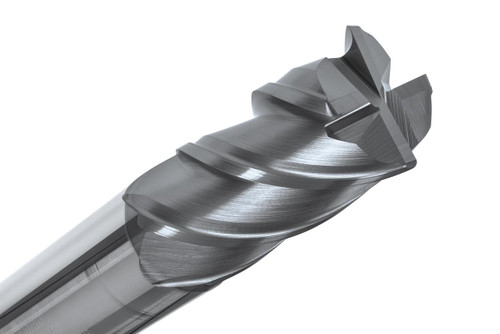

The CGS Tool MX143-2500.010 is basically a 1/4” diameter 4-flute solid-carbide corner radius end mill made for high-performance machining, especially when you’re working in hardened steels and also stainless steels, cast iron, titanium, Inconel, Hastelloy, and other unusual alloys. It’s part of the VMAX MX143 Series so it’s meant to keep cutting stable, help with smoother surface finishes, and stretch tool life when you run demanding CNC milling jobs.
The MX143-2500.010 uses advanced variable helix, plus a variable pitch geometry, it helps cut down on chatter and harmonics during the operation which can improve the feed rate and overall machining efficiency. The premium nACRo coating gives strong heat resistance and wear protection, while the .010” corner radius is there to boost edge strength, and it also helps reduce chipping when you push harder with aggressive cutting conditions.
Tool Specifications:
- Diameter: 1/4”
- Shank: 1/4”
- Length of Cut (LOC): 3/4”
- Overall Length (OAL): 2-1/2”
- Flutes: 4 - Corner Radius
- Corner Radius: .010”
- Material: Solid Carbide
- Coating: nACRo High Performance
- Series: CGS VMAX MX143
- Part No: MX143-2500.010
Key Performance Features:
- Variable helix and variable pitch reduce chatter and vibration
- Corner radius design improves edge strength and tool longevity
- nACRo coating enhances heat and wear resistance
- Optimized for hardened steels and difficult-to-machine alloys
- Improves feed rates, machining stability, and surface finish quality
- Designed for titanium, stainless steel, Inconel, and exotic materials
- Single end profile for precision CNC milling applications
