Product Overview

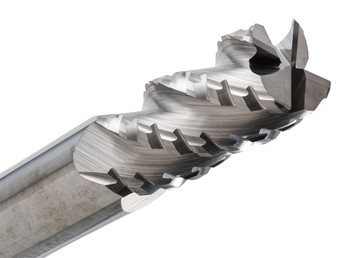

The CGS Tool 1009 is a 5/16" diameter 4-flute solid carbide square end mill from the Beast 1000 Series, sized for roughing and slot milling where material needs to come off quickly but the cut still needs to stay controlled. It's built for shops that want more than a basic roughing cutter.
Its Beast design uses CGS Tool's chip breaker geometry matched to help reduce spindle load and allow faster feeds in many materials. Uncoated and built with a 4-flute layout and square end profile, it's a smart choice for aggressive stock removal in a compact diameter.
Tool Specifications:
- Diameter: 5/16"
- Shank: 5/16"
- Length of Cut (LOC): 13/16"
- Overall Length (OAL): 2-1/2"
- Flutes: 4 - Square End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: Beast 1000 Series
- Part No: 1009
Key Performance Features:
- 4-Flute square end design for roughing and slot milling
- Chip breaker geometry matched to reduced spindle load
- Built to allow faster feeds in many materials
- Compact sizing supports controlled roughing
- Effective for aggressive stock removal
- Suited to smaller-diameter production work
