Product Overview

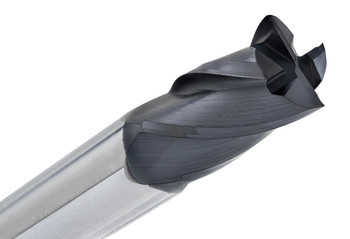

Fine general-purpose work needs a coated small cutter, and the 120-0781-ALTiN provides one at 5/64" diameter. This 2-flute square end mill is useful for miniature slots, small profiles, light plunge cuts, shallow pockets, and clean flat-bottom details.
ALTiN coating helps improve heat and wear resistance during tougher cutting conditions. With a 1/4" length of cut, 1-1/2" overall length, and 30° helix, this 120 Series cutter gives controlled square-end performance in small CNC features.
Tool Specifications:
- Diameter: 5/64"
- Shank: 1/8"
- Length of Cut (LOC): 1/4"
- Overall Length (OAL): 1-1/2"
- Flutes: 2 Flute
- End Style: Square End
- Material: Solid Carbide
- Coating: ALTiN
- Radius: No
- Series: 120 Series
- Part No: 120-0781-ALTiN
Key Performance Features:
- 2-flute square end built for fine milling work
- 5/64" diameter supports small detailed features
- ALTiN coating improves heat and wear resistance
- 30° helix supports smooth chip movement
- Handles tiny slots, profiles, plunge cuts, and flat-bottom work
- Cuts mild steel, stainless, cast iron, titanium, non-ferrous, plastics, and composites
