Product Overview

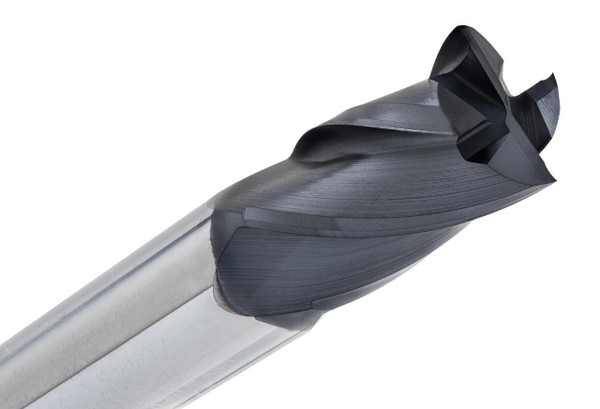

The CGS Tool 440-0781-ALTiN is a 5/64" diameter 4-flute solid carbide square end mill from the 440 Series, built with a double-end design for very small milling where clean square edges and compact control both matter. It's a genuinely small cutter meant for detail work.
Built on the same precision CNC equipment as CGS Tool's other general-purpose lines, it holds a 30° helix and an ALTiN coating matched to add protection when heat or wear becomes a concern in tighter features. Rated across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites, it handles small slots and fine profiles well.
Tool Specifications:
- Diameter: 5/64"
- Shank: 1/8"
- Length of Cut (LOC): 1/8"
- Overall Length (OAL): 1-1/2"
- Flutes: 4 - Square End
- Material: Solid Carbide
- Coating: ALTiN
- Radius: No
- Series: CGS General Purpose (440 Series)
- Part No: 440-0781-ALTiN
Key Performance Features:
- 4-Flute square end design for very small milling features
- Double-end body extends usable cutting value
- ALTiN coating matched to diameter for longer edge life
- 30° helix with precision-ground cutting edges
- Effective across mild steels, stainless, cast iron, and titanium
- Also suited to non-ferrous metals, plastics, and composites
