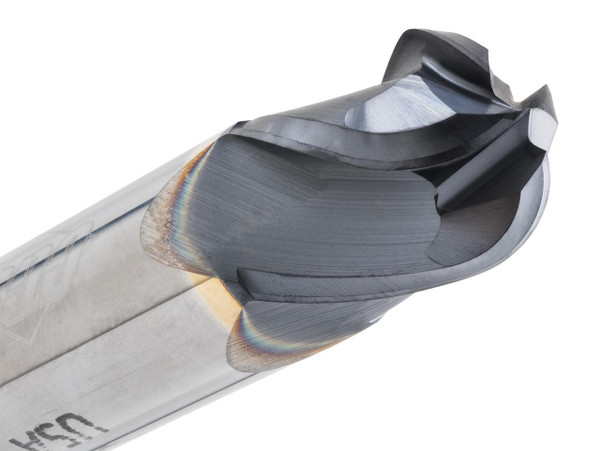

Product Overview
The CGS Tool 442-0781-ALTiN is a 5/64" diameter 4-flute solid carbide ball end mill built specifically for fine contour milling, with a double-end design that adds value at a small size where tool life goes fast. It belongs to the 442 Series, CGS Tool's double-end miniature ball nose line.
What sets this tool apart is the .039" radius, sized for small rounded details and compact blending, combined with the ALTiN coating for extra heat and wear resistance. The double-end build lets you get more use out of the tool once the first end dulls, and it holds up through mild steel, stainless, cast iron, titanium, non-ferrous material, plastics, and composites.
Tool Specifications:
- Diameter: 5/64"
- Shank: 1/8"
- Length of Cut (LOC): 1/8"
- Overall Length (OAL): 1-1/2"
- Flutes: 4 - Ball End
- Material: Solid Carbide
- Coating: ALTiN
- Radius: .039"
- Series: CGS 442 Series
- Part No: 442-0781-ALTiN
Key Performance Features:
- 4-flute ball end design for fine contour milling
- Double-end construction gives use from both cutting ends
- .039" radius supports small rounded details
- ALTiN coating adds heat and wear resistance
- Handles finishing, blending, and compact pocket machining
- Rated for mild steel, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
