Product Overview

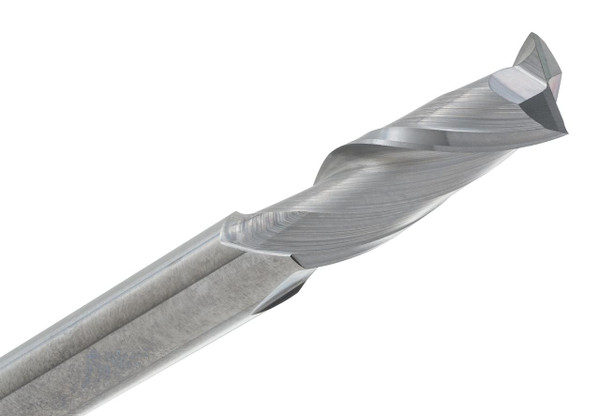

The CGS Tool 120-2031 is basically a 13/64" diameter 2-flute solid carbide square end mill ,made for compact general purpose milling, so it’s good for slotting, profiling, and also for clean flat bottom machining.
With a 5/8" length of cut and a 2-1/2" overall length, this 120 Series cutter gives steady control in small to mid size CNC setups, and the uncoated carbide body makes it pretty practical for normal shop conditions, honestly.
Tool Specifications:
- Diameter: 13/64"
- Shank: 1/4"
- Length of Cut (LOC): 5/8"
- Overall Length (OAL): 2-1/2"
- Flutes: 2 - Square End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: CGS 120 Series
- Part No: 120-2031
Key Performance Features:
- Compact milling work handled by a 2-flute square end design
- 13/64" diameter supports small-to-mid-size machining
- 30° helix keeps chip movement smooth
- Suited to slotting, profiling, plunge, and side wall milling
- Single-end solid carbide construction
- Performs across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
