Product Overview

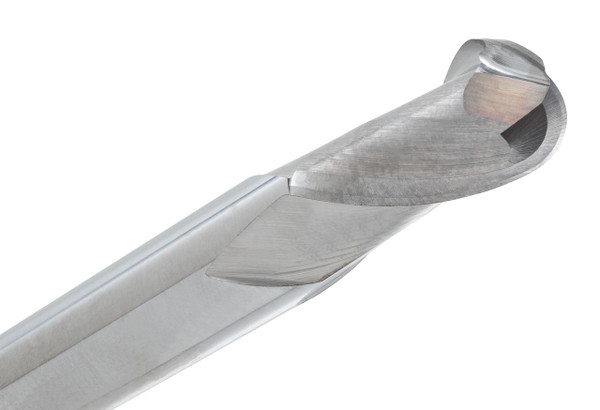

The CGS Tool 142-2031 is a 13/64" diameter 4-flute solid carbide ball end mill built for small profile and contour work where a compact radius does more accurate work than a larger cutter could. Its .1015" radius handles curved details and pocket blending without over-committing to a broader cutting form.
With single-end construction and a 30° helix, this 142 Series cutter comes off as dependable for general use, ball-end work basically. The uncoated carbide body then also does well across mild steels , stainless, cast iron, titanium, and non-ferrous metals. It even handles plastics and composites, of smoothly, when you need it.
Tool Specifications:
- Diameter: 13/64"
- Shank: 1/4"
- Length of Cut (LOC): 5/8"
- Overall Length (OAL): 2-1/2"
- Flutes: 4 - Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .1015"
- Series: CGS 142 Series
- Part No: 142-2031
Key Performance Features:
- Compact contour milling handled by a 4-flute ball end profile
- .1015" radius keeps rounded feature work precise
- 30° helix supports controlled, general-purpose cutting
- Well suited to finishing, blending, and curved pocket work
- Single-end solid carbide construction
- Cuts well across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
