Product Overview

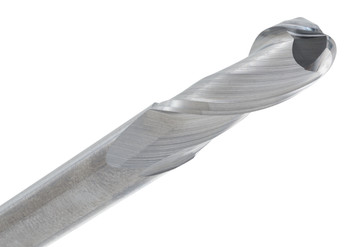

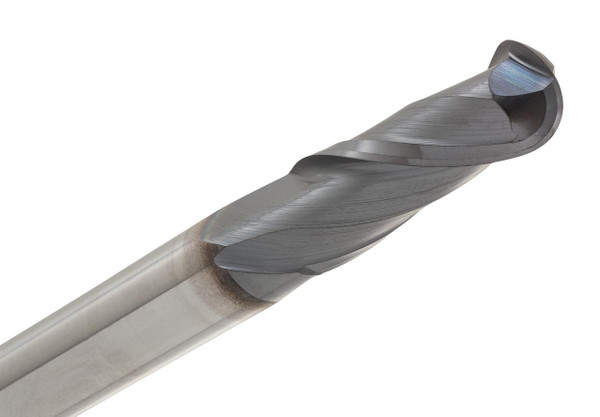

That small radius precision at 3/32" diameter, the CGS Tool 122-0938-ALTiN is basically a 2 flute ball end mill from the single-end 122 Series, made for fine 3D cutting, mold detail work, and of blended surface tasks.
The compact ball nose keeps the curved faces smooth, while the ALTiN coating gives the cutting edge extra life, so it does a bit more than you’d expect. Built from solid carbide, it’s up to mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics and composites, without much drama.
Tool Specifications:
- Diameter: 3/32"
- Shank: 1/8"
- Length of Cut (LOC): 3/8"
- Overall Length (OAL): 1-1/2"
- Flutes: 2 - Ball End
- Material: Solid Carbide
- Coating: ALTiN
- Helix: 30°
- Design: Single End
- Series: CGS 122 Series
- Part No: 122-0938-ALTiN
Key Performance Features:
- 2-flute ball end design for small-radius contouring and finishing
- ALTiN coating helps improve heat resistance and cutting edge life
- Ball nose profile supports smooth 3D surfaces and blended details
- 30° helix supports controlled cutting and chip movement
- Solid carbide construction provides rigidity and repeatable accuracy
- Suitable for mild steels, stainless, cast iron, titanium, non-ferrous materials, plastics, and composites
- Built for profiling, radius milling, finishing passes, and fine surface blending
