Product Overview

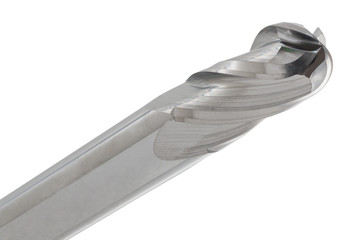

Fine contour work in compact pockets needs a small radius, and the 242-0938-ALTiN provides one at 3/32" diameter with a .0469" radius. This 4-flute ball end mill gives machinists a small rounded cutting form for compact pockets, light blending, and delicate finishing work.
ALTiN coating helps improve heat and wear resistance during tougher machining conditions. With a 3/16" length of cut, 1-1/2" overall length, and 30° helix, this 242 Series cutter gives controlled performance in smaller CNC features.
Tool Specifications:
- Diameter: 3/32"
- Shank: 1/8"
- Length of Cut (LOC): 3/16"
- Overall Length (OAL): 1-1/2"
- Flutes: 4 Flute
- End Style: Ball End
- Material: Solid Carbide
- Coating: ALTiN
- Radius: .0469"
- Series: 242 Series
- Part No: 242-0938-ALTiN
Key Performance Features:
- 4-flute ball end built for fine contour milling
- .0469" radius supports small, rounded feature work
- ALTiN coating improves heat and wear resistance
- 30° helix supports smooth cutting control
- Handles finishing, blending, and compact pocket machining
- Cuts mild steel, stainless, cast iron, titanium, non-ferrous, plastics, and composites
