Product Overview

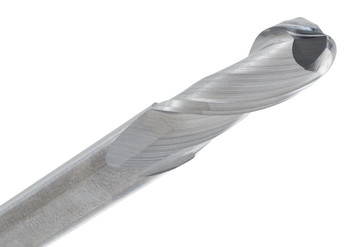

The CGS Tool 122-2969 is a 19/64" diameter 2-flute solid carbide ball end mill built specifically for general-purpose profile and contour milling in mid-size features. It belongs to the 122 Series, CGS Tool's standard ball nose line.
What sets this tool apart is the .1484" radius, giving a smooth rounded cutting form for curved pockets and surface blending, backed by a 13/16" length of cut that offers useful reach for compact ball-end work. Running a 30° helix, and left uncoated, it holds up through mild steel, stainless, cast iron, titanium, non-ferrous material, plastics, and composites.
Tool Specifications:
- Diameter: 19/64"
- Shank: 5/16"
- Length of Cut (LOC): 13/16"
- Overall Length (OAL): 2-1/2"
- Flutes: 2 - Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .1484"
- Series: CGS 122 Series
- Part No: 122-2969
Key Performance Features:
- 2-flute ball end design for contour and profile milling
- .1484" radius supports smooth rounded surface work
- 30° helix gives steady general-purpose cutting
- Handles finishing, blending, and curved pocket machining
- Single-end solid carbide build
- Rated for mild steel, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
