Product Overview

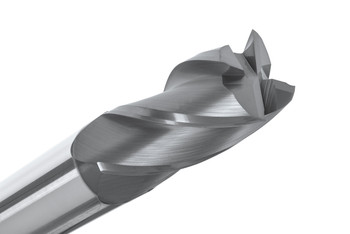

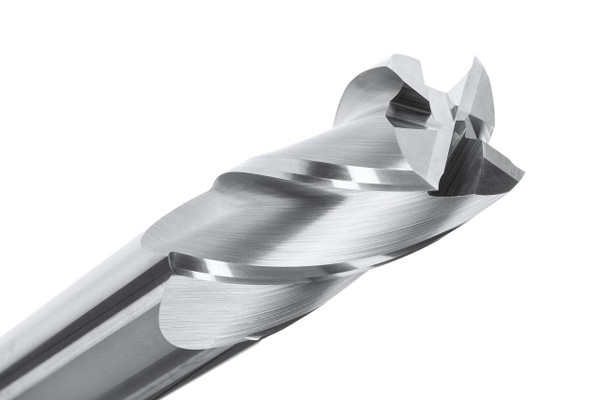

Small general purpose milling needs a clean, dependable cutter, and the 140-1875 does exactly that, at a 3/16" diameter. This 4 flute square end mill will take on slots, tight profiles, plunge cuts, flat bottom work, and that lighter side wall stuff too, with no real hassles along the way.
With a 30° helix and a single end solid carbide build, this 140 Series tool gives pretty steady stock removal for your day to day CNC routine. It’s a sensible option for mild steel, stainless steel, cast iron, titanium, non ferrous metals, plastics, and composites.
Tool Specifications:
- Diameter: 3/16"
- Shank: 3/16"
- Length of Cut (LOC): 5/8"
- Overall Length (OAL): 2"
- Flutes: 4 Flute
- End Style: Square End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: 140 Series
- Part No: 140-1875
Key Performance Features:
- 4-flute square end built for small general-purpose milling
- 3/16" diameter performs well in compact features
- 30° helix supports smooth chip movement
- Handles slotting, profiling, plunging, and side wall milling
- Single-end solid carbide construction
- Cuts mild steel, stainless, cast iron, titanium, non-ferrous, plastics, and composites
