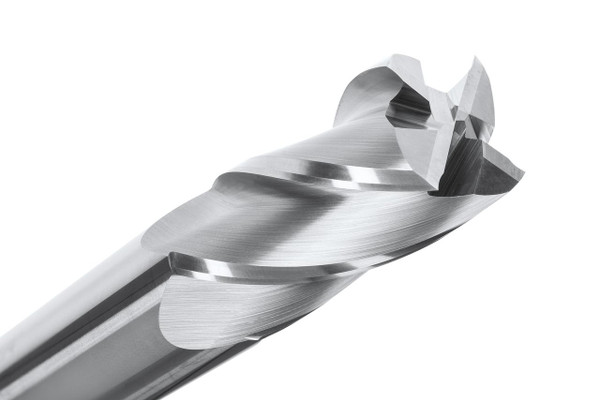

Product Overview
For steady all-around cutting you want something that really doesn’t make it a bigger deal than it is, and the 140-2344 does just that with its 15/64" diameter staying simple. This 4-flute square end mill works for slots, profiles, plunge cutting, sidewall milling, and also flat-bottom machining, where those crisp square-end outcomes really do matter.
Made with a 30° helix and single-end style, this 140 Series tool keeps the chip removal nice and even across a broad set of CNC materials. The uncoated carbide body means it is a practical choice for day-to-day roughing as well as finishing jobs without turning into too much fuss.
Tool Specifications:
- Diameter: 15/64"
- Shank: 1/4"
- Length of Cut (LOC): 3/4"
- Overall Length (OAL): 2-1/2"
- Flutes: 4 Flute
- End Style: Square End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: 140 Series
- Part No: 140-2344
Key Performance Features:
- 4-flute square end built for general-purpose milling
- 15/64" diameter performs well in compact features
- 30° helix supports smooth chip movement
- Handles slotting, profiling, plunging, and side wall milling
- Single-end solid carbide construction
- Cuts mild steel, stainless, cast iron, titanium, non-ferrous, plastics, and composites
