Product Overview

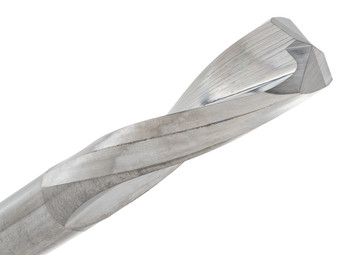

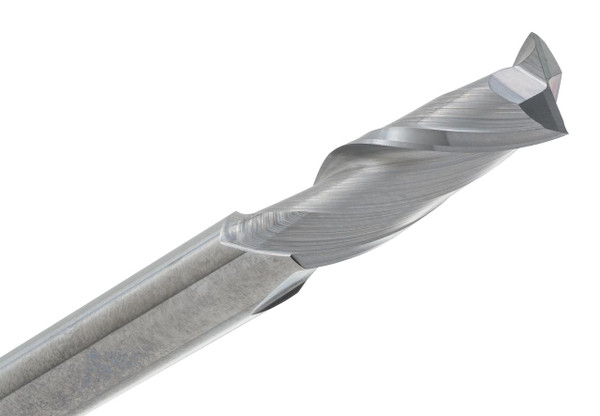

The CGS Tool 120-2344 is a 15/64" diameter 2-flute solid carbide square end mill built specifically for controlled general-purpose milling in compact features. It belongs to the 120 Series, CGS Tool's everyday all-purpose line.
What sets this tool apart is nothing flashy — it's a dependable, uncoated cutter that runs a 30° helix and holds a single-end build, giving steady stock removal for compact slots, profiles, plunge cuts, side wall work, and flat-bottom details. It holds up through mild steel, stainless, cast iron, titanium, non-ferrous material, plastics, and composites.
Tool Specifications:
- Diameter: 15/64"
- Shank: 1/4"
- Length of Cut (LOC): 3/4"
- Overall Length (OAL): 2-1/2"
- Flutes: 2 - Square End
- Material: Solid Carbide
- Coating: Uncoated
- Series: CGS 120 Series
- Part No: 120-2344
Key Performance Features:
- 2-flute square end design for general-purpose milling
- 15/64" diameter works well in compact features
- 30° helix supports smooth stock removal
- Handles slotting, profiling, plunging, and side wall milling
- Single-end solid carbide build
- Rated for mild steel, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
