Product Overview

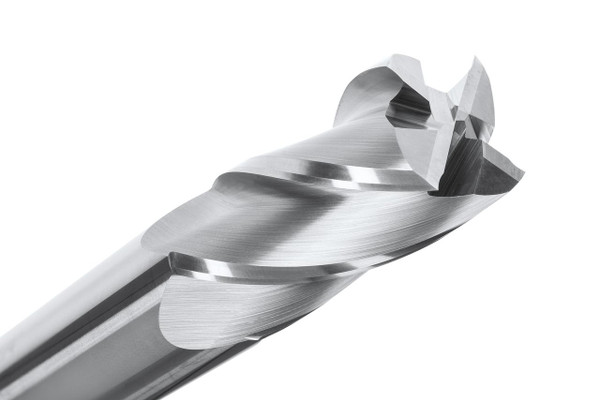

Right in the middle of the common size range, the 140-4375 it covers a lot of ground without making machinists have to think too hard about it. This 7/16" diameter, 4-flute square end mill is part of the standard 140 Series, built for dependable roughing and also finishing on those everyday jobs. It’s get precision ground edges and a 30° helix, it keeps the cutter more predictable so the chips move out steadily and the tool doesn’t overheat in the middle of the cut. It's an uncoated, single-end design that handles slotting, profiling, plunge work, and side wall milling across mild steel, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites without any special setup.
Tool Specifications:
- Diameter: 7/16"
- Shank: 7/16"
- Length of Cut (LOC): 1"
- Overall Length (OAL): 2-3/4"
- Flutes: 4 Flute
- End Style: Square End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: 140 Series
- Part No: 140-4375
Key Performance Features:
- 4-flute square end suited to roughing and finishing work
- 7/16" diameter gives strong mid-size cutting capability
- 30° helix supports steady, controlled chip flow
- Handles slotting, profiling, plunging, and side wall milling
- Single-end solid carbide construction
- Cuts mild steel, stainless, cast iron, titanium, non-ferrous, plastics, and composites
