Product Overview

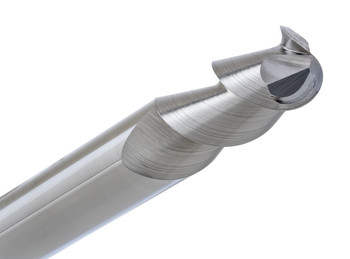

The CGS Tool 2030-S has a 1/2” diameter 2-flute solid carbide square end mill, made for maximum material removal and pretty fine surface precision especially in aluminum, non-ferrous metals and plastics. It comes from the ferocious series, so it’s aimed at machinists who want high performance when you run it hard at extreme feed rates.
Built using premium sub-micro grain carbide, the 2030-S has a 55° high helix for better chip evacuation, lower cutting forces and good surface finishes. The polished cutting edges, plus a free-cutting geometry, help cut down built-up edges, while still keeping an exceptional tool life even in high-speed CNC setups, you know when everything is moving fast.
Tool Specifications:
- Diameter: 1/2”
- Shank: 1/2”
- Length of Cut (LOC): 1”
- Overall Length (OAL): 3”
- Flutes: 2 - Square End
- Material: Solid Micro-Grain Carbide
- Coating: ZrN
- Series: CGS Ferocious
- Part No: 2030-S
Key Performance Features:
- 2-Flute, 55° High Helix design for aluminum and non ferrous machining
- Ultra-smooth polished land for superior surface finish
- Capable of extreme RPM and feed rates
- Excellent chip evacuation and edge strength
- Ideal for roughing, slotting, and contouring applications
- Reduced neck & Weldon flats available upon request
- ZrN coating provides extended tool life and cleaner cuts in non-ferrous materials
