Product Overview

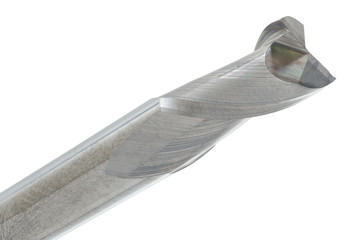

The CGS Tool 220-0938 is a 3/32" diameter 2-flute solid carbide square end mill from the 220 Series, sized for small, controlled milling where the cutter needs to stay sharp in tighter areas. It's built for small slots, light profiles, and shallow pockets that a larger tool couldn't handle cleanly.
Built on the same precision CNC equipment as CGS Tool's other general-purpose lines, it holds a 30° helix and a single-end design matched to good chip room in smaller cuts. Uncoated and rated across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites, it's a straightforward tool for detail-scale work.
Tool Specifications:
- Diameter: 3/32"
- Shank: 1/8"
- Length of Cut (LOC): 3/16"
- Overall Length (OAL): 1-1/2"
- Flutes: 2 - Square End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: CGS General Purpose (220 Series)
- Part No: 220-0938
Key Performance Features:
- 2-Flute square end design for small milling applications
- Compact sizing fits fine slots and detail cuts
- 30° helix with precision-ground cutting edges
- Uncoated construction for general-purpose applications
- Effective across mild steels, stainless, cast iron, and titanium
- Also suited to non-ferrous metals, plastics, and composites
