Product Overview

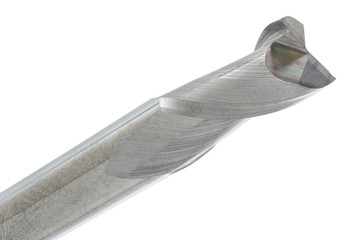

When chip clearance is the priority, a 2-flute cutter usually wins out, and the CGS Tool 220-3125 gives shops exactly that — a 5/16" diameter square end mill from the 220 Series built for general slotting and profiling across a wide range of materials.
Fewer flutes means more room for chips to clear, which matters in operations where evacuation becomes the bottleneck. Uncoated carbide keeps things simple, and this cutter is suited to mild steels, stainless, cast iron, titanium, non-ferrous materials, plastics, and composites.
Tool Specifications:
- Diameter: 5/16"
- Shank: 5/16"
- Length of Cut (LOC): 13/16"
- Overall Length (OAL): 2-1/2"
- Flutes: 2 - Square End
- Material: Solid Carbide
- Coating: Uncoated
- Helix: 30°
- Series: CGS 220 Series
- Part No: 220-3125
Key Performance Features:
- 2-flute square end design provides strong chip clearance
- 30° helix supports smooth cutting and balanced chip movement
- Solid carbide construction gives rigidity and wear resistance
- Uncoated finish offers flexibility for general-purpose machining
- Suitable for mild steels, stainless, cast iron, titanium, non-ferrous materials, plastics, and composites
- Built for slotting, profiling, pocketing, and everyday milling work
- Good choice for jobs where chip evacuation is a priority
