Product Overview

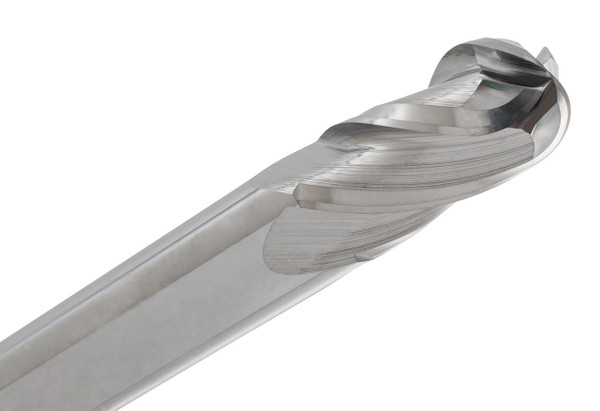

The CGS Tool 242-1875 is a 3/16" diameter 4-flute solid carbide ball end mill from the 242 Series, sized for smaller profile and finishing work where a clean rounded surface or blended pocket is needed. It fills a job a square end mill simply can't handle.
Built on the same precision CNC equipment as CGS Tool's other general-purpose lines, it holds a 30° helix and a .0938" radius matched to its diameter, staying compact at a 2" overall length. Uncoated and rated across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites, it's a steady general-purpose choice.
Tool Specifications:
- Diameter: 3/16"
- Shank: 3/16"
- Length of Cut (LOC): 3/8"
- Overall Length (OAL): 2"
- Flutes: 4 - Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .0938"
- Series: CGS General Purpose (242 Series)
- Part No: 242-1875
Key Performance Features:
- 4-Flute ball end design for profile and contour milling
- .0938" radius matched to diameter for clean rounded features
- Compact OAL gives good control
- 30° helix with precision-ground cutting edges
- Effective across mild steels, stainless, cast iron, and titanium
- Also suited to non-ferrous metals, plastics, and composites
