Product Overview

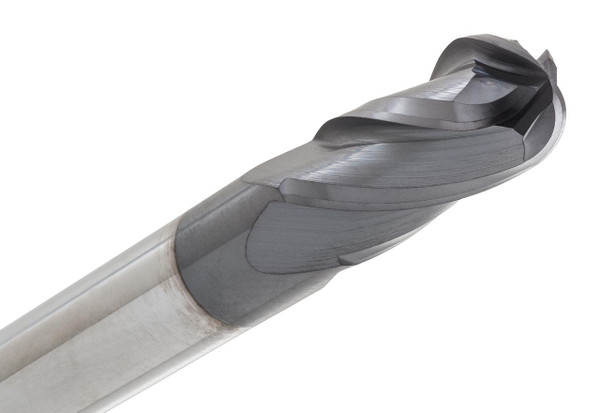

The CGS Tool 242-1875-ALTiN is a 3/16" diameter 4-flute solid carbide ball end mill built for compact profile work, with a .0938" radius that gives a smooth rounded cutting form for small curved features.
The ALTiN coating helps protect the cutting edge during more demanding machining conditions, and with a 3/8" length of cut and 2" overall length, this 242 Series cutter gives controlled ball-end performance in smaller CNC work.
Tool Specifications:
- Diameter: 3/16"
- Shank: 3/16"
- Length of Cut (LOC): 3/8"
- Overall Length (OAL): 2"
- Flutes: 4 - Ball End
- Material: Solid Carbide
- Coating: ALTiN
- Radius: .0938"
- Series: CGS 242 Series
- Part No: 242-1875-ALTiN
Key Performance Features:
- Compact contour milling handled by a 4-flute ball end design
- .0938" radius supports small rounded feature work
- ALTiN coating adds heat and wear resistance
- 30° helix supports smooth cutting control
- Suited to finishing, blending, and curved pocket machining
- Performs across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
