Product Overview

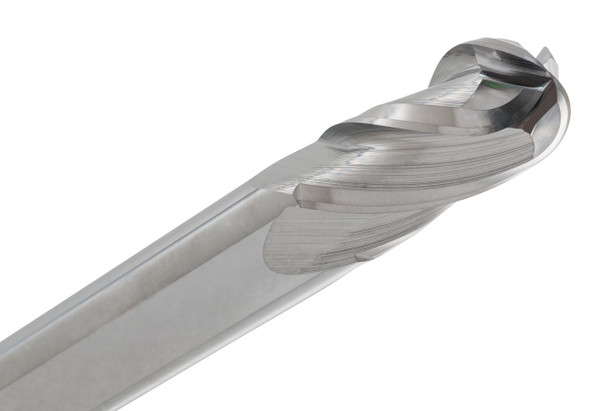

The CGS Tool 242-5000 is of a 1/2" diameter, 4-flute solid carbide ball end mill, made more for profile and contour chores, with a .250" radius that gives you a smooth, rounded cutting style for those curved pockets and surface blending type results.
And then with the 5/8" length of cut , plus a 2-1/2" overall length, this 242 Series cutter keeps a steady ball-end behavior for compact-to-mid-size CNC setups, and the uncoated carbide body makes it workable for everyday general-purpose machining, not just for special tasks.
Tool Specifications:
- Diameter: 1/2"
- Shank: 1/2"
- Length of Cut (LOC): 5/8"
- Overall Length (OAL): 2-1/2"
- Flutes: 4 - Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .250"
- Series: CGS 242 Series
- Part No: 242-5000
Key Performance Features:
- Contour and profile milling handled by a 4-flute ball end design
- .250" radius supports smooth rounded surface work
- 30° helix gives controlled, general-purpose cutting
- Suited to finishing, blending, and curved pocket machining
- Single-end solid carbide construction
- Performs across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
