Product Overview

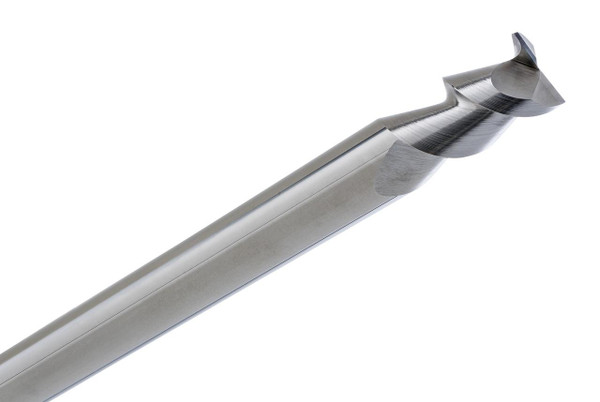

The CGS Tool 2502 has a 1/8” diameter, 2-flute solid carbide square end mill. It is made so it can do maximum material removal and still keep surface precision tight on aluminum, non-ferrous metals, and plastics. It comes from the ferocious series so it’s built for machinists who want serious performance, especially when they push extreme feed rates and run fast.
Made using premium sub-micro grain carbide, the 2502 uses a 55° high helix to help with chip evacuation, lower cutting forces and yeah, better surface finishes. The polished cutting edges plus its free-cutting geometry help minimize built-up edges, but without giving up tool life, even when it’s doing high-speed CNC work day after day.
Tool Specifications:
- Diameter: 1/8”
- Shank: 1/8”
- Length of Cut (LOC): 1/4”
- Overall Length (OAL): 2”
- Flutes: 2 - Square End
- Material: Solid Micro-Grain Carbide
- Coating: Bright (Uncoated)
- Series: CGS Ferocious
- Part No: 2502
Key Performance Features:
- 2-Flute, 55° High Helix design for aluminum and non-ferrous machining
- Ultra-smooth polished land for superior surface finish
- Capable of extreme RPM and feed rates
- Excellent chip evacuation and edge strength
- Ideal for roughing, slotting, and contouring applications
- Reduced neck & Weldon flats available upon request
- ZrN coating option available for extended life and cleaner cuts.
