Product Overview

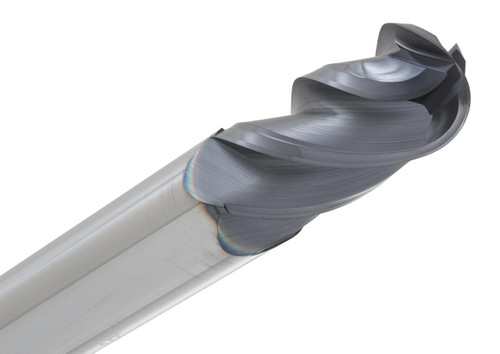

The CGS Tool HV142-2502 has a 1/4” diameter, 4-flute, solid carbide ball end mill made for high-performance machining when you’re working with steels and various alloys. It comes from the Hi-Velocity (HV) Series, so it’s built to give you this solid kind of strength, speed, and precision for roughing as well as finishing, depending on what your setup needs.
Made from premium micro-grain carbide, the HV142-2502 has a variable helix along with a variable index shape, and yeah, it uses an ALTiN coating for top heat resistance and longer tool life when you run at high RPM. There’s also a free-cutting style to help with nicer surface finish, and chip evacuation too, while keeping vibration and wear under control. That means machinists can push feeds and speeds further, without losing accuracy.
Tool Specifications:
- Diameter: 1/4”
- Shank: 3/8”
- Length of Cut (LOC): 3/8”
- Overall Length (OAL): 6”
- Flutes: 4 - Ball End
- Material: Solid Micro-Grain Carbide
- Coating: ALTiN (Aluminum Titanium Nitride)
- Series: CGS Hi-Velocity (HV)
- Part No: HV142-2502
Key Performance Features:
- Variable Helix & Index for smoother, quieter cutting
- ALTiN coating for superior oxidation resistance
- Exceptional performance at high RPMs
- Improved surface finish on steels, stainless steels, and hardened materials
- Ideal for slotting, profiling, and finishing operations
- Reduced neck & Weldon flats available upon request
