Product Overview

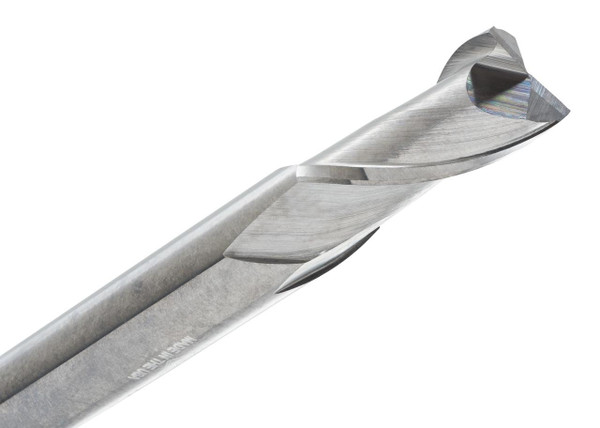

Fine detail work still needs tool life,and the 420-0781 gives you both too at a 5/64" diameter. This 2-flute square end mill is a bit of a dual-ended design , made for careful general milling,especially for tiny grooves, small profiles, plunging work, and flat-bottom features where control matters.With a 1/8" length of cut and an overall reach of 1-1/2", the 420 Series tool provides steady performance in tight CNC pockets. Since it is uncoated carbide,it’s practical pick for everyday shop conditions.
Tool Specifications:
- Diameter: 5/64"
- Shank: 1/8"
- Length of Cut (LOC): 1/8"
- Overall Length (OAL): 1-1/2"
- Flutes: 2 Flute
- End Style: Square End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: 420 Series
- Part No: 420-0781
Key Performance Features:
- 2-flute square end built for fine milling work
- Double-end design gives use from both cutting ends
- 5/64" diameter supports small detailed features
- Compact length of cut supports control in tight machining areas
- Handles tiny slots, profiles, plunge cuts, and flat-bottom work
- Cuts mild steel, stainless, cast iron, titanium, non-ferrous, plastics, and composites
